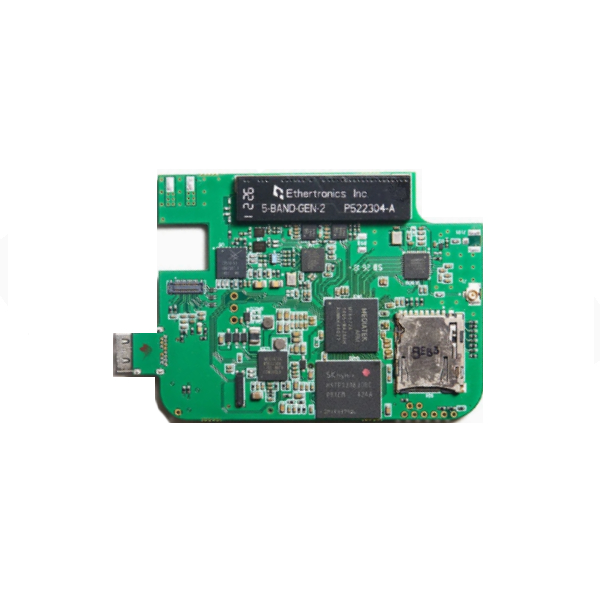

PCBA  Images

About TECircuit

Found: TECircuit has been operating since 2004.

Location: An electronics manufacturing service(EMS) provider located in Shenzhen China.

Item: Customizable EMS PCB, offers a full range of one-stop shop services.

Service: Printed Circuit Board (PCB)and Printed Circuit Board Assembly(PCBA), Flexible Printed Circuit Board(FPC), Components Sourcing, Box-Building, Testing.

Quality Assurance: UL,ISO 9001, ISO 14001, ISO 13485, ITAF 16949 andcomplied with ROHS and REACH.

Factory Pictures:
Company's own plant : 50,000 sqm; Employees : 930+; Monthly production capacity : 100,000 m2

PCBA  Applications

• Automated Wildlife Monitoring and Data Collection: The PCBA processes image and sensor data to automatically identify bird species, count visits, and log activity patterns, providing valuable data for ornithologists, researchers, and conservationists.

• Personal Birdwatching and Enrichment: It sends real-time notifications and video clips of bird visitors to a user's smartphone, enhancing the birdwatching experience and allowing for remote enjoyment of backyard wildlife.

• Intelligent Feeder Management: By analyzing visitation data, the system can alert the user when seed levels are low or detect potential malfunctions, ensuring a consistent food supply for birds.

• Citizen Science and Community Engagement: The collected data can be contributed to larger scientific databases (e.g., eBird), enabling users to participate in crowd-sourced research and track migratory patterns.

• Pest and Squirrel Deterrence: Advanced models on the PCBA can distinguish between desired bird species and pests like squirrels or invasive birds, triggering physical deterrents (e.g., a spinning perch) or emitting a specific sound to scare them away.

• Educational Tool for Nature Studies: Serves as an interactive tool for students and families to learn about local biodiversity, bird behaviors, and the importance of ecosystems directly from their home or classroom.

• Security and Property Monitoring: With its camera and motion detection capabilities, the feeder can double as an additional outdoor security camera, monitoring the immediate surroundings of a home.

PCBA Features

1. Edge AI Processing Unit: The PCBA incorporates a dedicated AI accelerator or a powerful System-on-Chip (SoC) capable of running machine learning models locally. This allows for on-device bird species identification and behavior analysis without constant cloud dependency, ensuring faster response and privacy.

2. High-Definition Camera with Night Vision: Integrates a camera module capable of capturing still images and video, often with infrared or low-light capabilities for 24/7 monitoring and clear footage during dawn, dusk, or at night.

3. Integrated Sensors Suite: The board includes various sensors such as a PIR (Passive Infrared) motion sensor for activation, a weight sensor on the perch to detect animal size, and a seed-level sensor to monitor food inventory.

4. Multi-Mode Connectivity (Wi-Fi, Bluetooth, LoRaWAN): Features built-in Wi-Fi for high-bandwidth data transfer (images/video) to a home network and cloud services. Bluetooth allows for easy initial setup and direct device communication. Optional LoRaWAN or cellular modules enable deployment in areas without Wi-Fi.

5. Advanced Power Management IC (PMIC) & Flexible Power Options: Employs a sophisticated PMIC to efficiently manage power consumption, supporting options for solar panel recharging, battery-only operation, or wired power, ensuring continuous operation in various environments.

6. Weather-Resistant and Durable Design: The PCBA is designed with conformal coating and uses components rated for extended temperature ranges to withstand harsh outdoor conditions like rain, snow, humidity, and extreme temperatures.

7. Audio Module (Speaker/Microphone): Includes a speaker to play specific sounds for deterring pests or attracting certain birds. A microphone can also be included for capturing bird songs for more advanced analysis.

FAQ

​PCB & PCBA  Description​

PCB Assembly OEM Service

Electronic Components Material Purchasing

Bare PCB Fabrication

Cable, Wire-harness Assembly, Sheet Metal, Electrical Cabinet Assembly Service

PCB Assembly Service: SMT, BGA, DIP

PCBA test: AOI, In-Circuit Test (ICT), Functioal Test (FCT)

Conformal Coating Service

Prototyping and Mass Production

​​

PCBA ODM service

PCB Layout, PCBA Design According To Your Idea

PCBA Copy/Clone

Digital Circuit Design / Analog Circuit Design/ lRF Design /Embedded Software Design

Firmware and Microcode Programming Windows Application (GUI) Programming/Windows Device Driver (WDM) Programming

Embedded User Interface Design / lSystem Hardware Design

​
